CAD Modeling, Animation & Analysis
See the cell run before we build it.
3D CAD models, animation, and digital-twin simulation that prove the cell design before we build it, and before it reaches your floor.

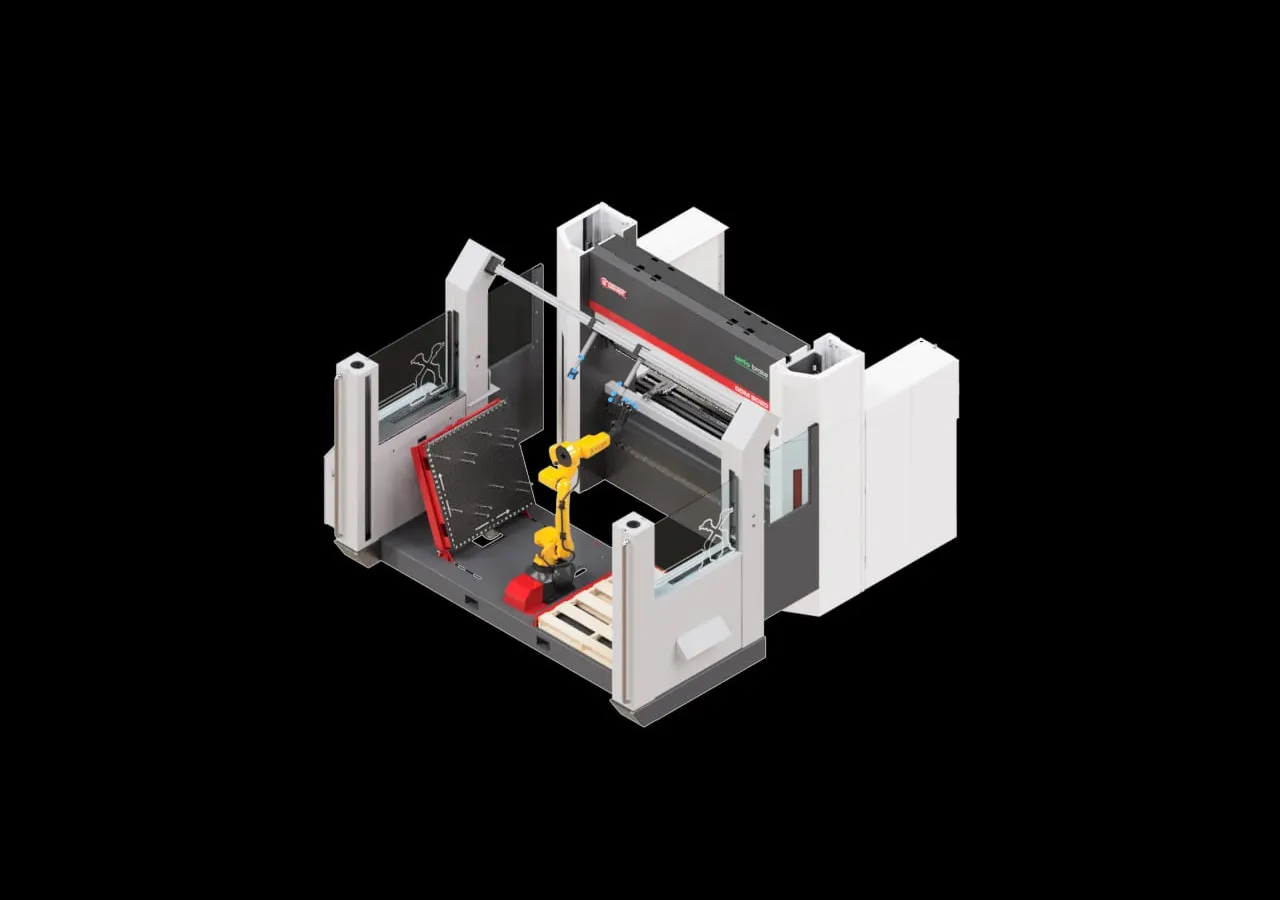

- 3D CAD models of cells, tooling, and machines
- Animation that shows how the cell will run before steel is cut
- Digital-twin simulation with offline programming, so changeovers take minutes
- Analysis that validates the design before build and installation
What it is
Every cell we build exists in CAD first. We model the cell, the tooling, and the machines around it, animate how it will run, and analyze the design before anything is fabricated, so the arguments happen on screen, where changes are cheap.
Who it is for
Decision-makers who want to see exactly what they are buying before it is built, and operations teams who want the cell proven out before it lands on their floor.
What it covers
Cell layout and reach studies, tooling models, and offline programming. The result is a design that has been argued over, simulated, and validated before fabrication starts, feeding a pre-tested modular skid and a predictable install. We move data, not just parts: the same model thinking carries into cells that report cycle times, uptime, and part counts.
Start with the Fit Check.
About a minute, with no contact information needed to see the answer. If it fits, we offer a first visit. You decide what happens after.
